JABLOTRON 100+

System control module

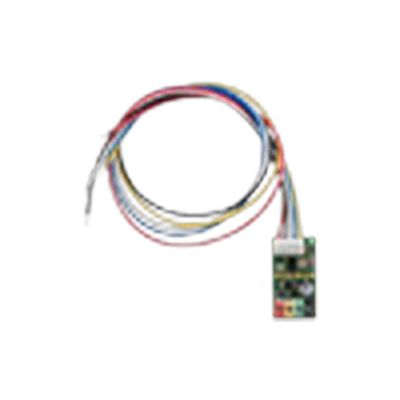

JA-111H-AD TRB

The JA-111H-AD TRB is designed for the connection of any control device (with contact or impulse outputs) to the JABLOTRON 100+ system and provides it with a power supply from the control panel bus. This built-in module can be directly integrated into the control device. One input of the module has a fixed Tamper signal, several set signals can be selected for the second input and the third input serves either to report a fault of the connected device, or it can be used as the second control conductor with a fixed “Unset” signal. The module can be used to control programmable PG outputs. It allows you to set a minimum activation time for the controller (0.1 s - 300 s). The detector features impulse activation for dual-conductor control as well as status control for single-conductor control. The module is a component of the JABLOTRON 100+ system, is addressable and occupies one position in the system.

Model: JA-111H-AD TRB
Range: JABLOTRON 100+
Category: Modules and automation
Connection: Wired (BUS)
Use: Indoor
