JABLOTRON 100+

Module for the connection of a wired detector

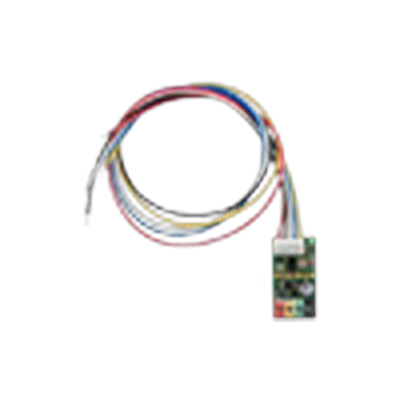

JA-111H TRB

The JA-111H TRB module is designed for the connection of any wired detector (with contact or impulse outputs) to the JABLOTRON 100+ system and provides it with a power supply. This built-in module can be directly integrated into the detector. One input of the module has a fixed Tamper signal, the second input reports an alarm signal and the third input is used to report a fault of a connected device or to report a special “Masking” signal (for detectors with an Anti-masking function). The module can also be used for the connection of a CT-01 roller blind detector. The module can be used to control programmable PG outputs. It supports setting of a minimum activation time for alarm triggering (0.1 s - 300 s). The detector features status as well as impulse activation. The module is a device of the JABLOTRON 100+ system, is addressable and occupies one position in the system.

Model: JA-111H TRB
Range: JABLOTRON 100+
Category: Modules and automation
Connection: Wired (BUS)
Use: Indoor
