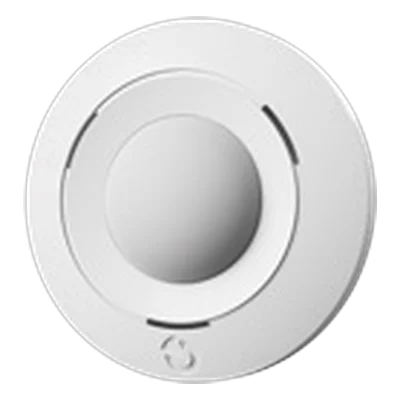

JABLOTRON 100+

Ceiling PIR motion detector

JA-115P

The product is a bus system device for the JABLOTRON 100+. It is designed to detect human body motion inside buildings. Compared to standard motion detectors from the JABLOTRON 100+ series, this detector is designed for ceiling installation. It is installed on the ceiling and its guaranteed detection coverage is 360° with a capture radius of up to 5.5 m at a mounting height of 3.5 m. The resistance to false alarms is adjustable at two levels The detector has a pulse response and occupies one position in the system. For automation functions, the detection sensitivity can be increased in the triggered system status. A circular spacer (PLV-P-ST) has been developed as a certified accessory for ceiling mounted detectors so the bus cable can be hidden in cases where it cannot be neatly hidden in the ceiling.

Model: JA-115P
Range: JABLOTRON 100+
Category: Detectors
Connection: Wired (BUS)
Use: Indoor
